ELISpot Plus: Human IL-12 p70 (ALP)

ELISpot Plus: Human IL‑12 p70 (ALP)

3455-4APW-2

Publications: 14
Documents
Questions?
The easiest way to achieve reproducibility in ELISpot.

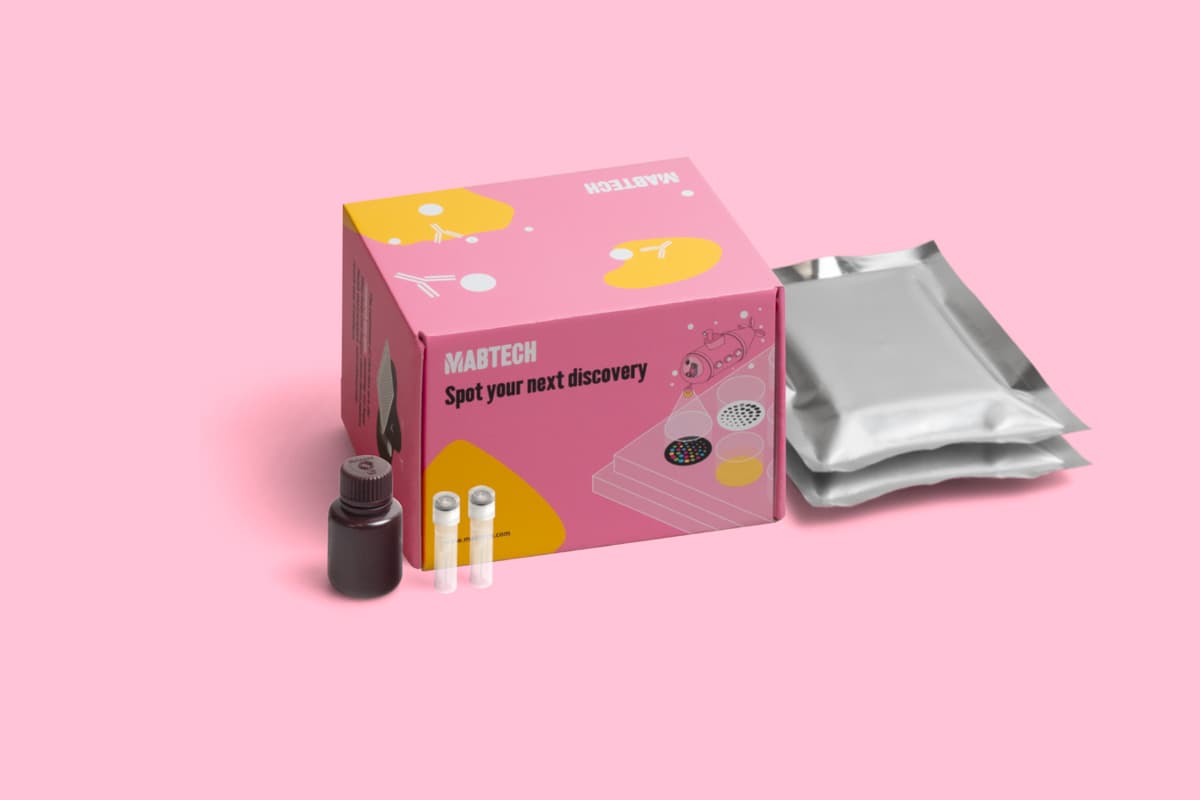

Components

PlatePre-coated ELISpot plate, white MSIP (mAbs MT86/221)
Detection mAbMT704, biotin
Enzyme conjugateStreptavidin-ALP
SubstrateBCIP/NBT-plus

In stock

Delivery 4-9 business days

Shipping $0

Product specifications

Intended use

This ELISpot Plus kit is intended for the enumeration of cells secreting human IL-12 p70 using the ELISpot assay. For research use only. Not for use in diagnostic procedures.

Serum/Plasma samples

Recommendation

Product details

ProductELISpot Plus: Human IL-12 p70 (ALP)
ApplicationELISpot
AnalyteIL-12 (p70)
ReactivityHuman, Non-human primates
SpecificityThis kit is based on a matched pair of mAbs specific for human IL-12 p70.
Cross-reactivityThe mAbs react with human IL-12p70 and cross-react with IL-12 p70 from non-human primates (NHP). For more information please check the Cross-reactivity guide section below.

Shipping and Storage

ShippingShipped at ambient temperature.
StorageStore antibodies, enzyme conjugate, and substrate at 4-8 °C upon receipt. Plates may be kept at room temperature.
Shelf lifeAt least 18 months from date of receipt.
PBMC (200,000 cells/well) were incubated for 20 h in the absence or presence of R848 and LPS, and the number of cells secreting IL-12 (p70) was analyzed by ELISpot.
Datasheet/Protocol
SDS

Learn how to combine Mabtech’s antibodies for the detection of human IL-12, IL-12/-23 (p40), IL-23, IL-27, and EBI3 in ELISA and ELISpot.



The IL-12 cytokine family

The IL-12 cytokine family consists of IL-12, IL-23, IL-27, IL-35, and IL-39. The existence of IL-39 in human remains, however, to be confirmed. The proteins are heterodimers of different subunits which are either unique or shared by several family members. IL-12 is a heterodimer, (p70), consisting of two covalently linked subunits, p35 and p40. The p40 subunit is shared with IL-23 which is a heterodimer of p40 and a unique p19 subunit. The p40 subunit also exists as a monomer and homodimer. The EBI3 subunit is shared with IL-27, IL-35, and IL-39.

Mabtech supplies monoclonal antibodies with defined subunit specificities to p40, p35, p19, p28, and EBI3. Since both IL-12 and IL-23 heterodimers contain the p40 subunit, capture immunoassays based on antibodies to p40 will detect both cytokines. Such assays can also detect p40 monomers and dimers. The EBI3 assays will detect IL-27, IL-35, and IL-39.

In our IL-12 and IL-23 assays, the same capture antibodies to p40 (MT86/221) are used. Different detection antibodies enable the detection of IL-12 (p70), IL-12/-23 (p40), and IL-23.



Application guide: mAbs to human IL-12, IL-23, IL-27 and EBI3



 IL-12 (p70)


Capture mAbs: MT86/221 (p40 specific)

Detection mAb: MT704 (p70 specific)



 IL-23


Capture mAbs: MT86/221 (p40 specific)

Detection mAb: MT155 (p19 specific)



 IL-27


Capture mAbs: MT27/361 (IL-27 and p28 specific)

Detection mAb: MT140 (EBI3 specific)
 IL-12/-23 (p40)


Capture mAbs: MT86/221 (p40 specific)

Detection mAb: MT618 (p40 specific)



 EBI3 (IL-27 and IL-35)

Capture mAbs: MT23A14 (EBI3 specific)

Detection mAb: MT140 (EBI3 specific)





Get inspired!

Make sure to check out how researchers have used Mabtech's IL-23 ELISA, ELISpot, and FluoroSpot kits in everything from infectious disease research to novel immunotherapies. You can find it all in our Publication database.

The systems reactive with NHPs are either based on cross-reactive human kits or specifically developed monkey kits (NHP).

Cross-reactivity verification tests have been performed in ELISpot and/or ELISA by Mabtech and/or by others. Evaluations of assays with less solid evidence of cross-reactivity are shown as symbols within parentheses.

 Rhesus MacaqueCynomolgus MacaquePig-tailed MacaqueBaboon*Sooty MangabeyAfrican Green MonkeyNight Monkey*Common MarmosetSquirrel Monkey
ASSAYOld worldNew world
ApoA1
ApoB
ApoE (NHP)
ApoE
ApoH
CCL2 (MCP-1)
CCL4 (MIP-1β) ( ) ( )( )( )( )
CCL22 (MDC) ( ) ( )( )( )( )
CD25
GM-CSF( )( )
Granzyme A
Granzyme B (NHP)
Granzyme B
IFN-α2
IFN-α pan   ( )
IFN-γ (NHP)
IFN-γ( )
IgA (NHP)
IgA
IgG
IgM
INS
IL-1α
IL-1β
IL-2 (NHP)
IL-3
IL-4( )( )( )( )
IL-5( )( )( )
IL-6( )( ) ( )
IL-8 (NHP)
IL-8 (ELISA)
IL-8 (ELISpot)
IL-10 (NHP)
IL-10
IL-12/-23 (p40)
IL-12 (p70)
IL-13 (NHP)( )( )( )
IL-13
IL-17A (NHP)( )( )
IL-17A
IL-17F
IL-17A/F
IL-21
IL-22
IL-23
IL-27
IL-31
IP-10
Perforin( )
TGF-β1 (latent)
TNF-α (NHP)( )  ( )( )( )( )
TNF-α

SINGLE mAbs
Cell stimulation
CD3, mAb CD3-1
CD3, mAb CD3-2
CD28, mAb CD28-A
Flow cytometry
IFN-γ mAb 1-D1K( )( )( )( )( )( )
IL-2 mAb MT8G10( )( )( )( ) ( )( )( )
IL-4 mAb IL4-3( )
IL-17A mAb MT504
Perforin mAb Pf-344
TNF-α mAb MT15B15
Ig reagents
IgG1 mAb MTG1218
IgG1 mAb MT1939
IgG2 mAb H6200
IgG2 mAb MTG211E
IgG3 mAb MTG34
IgG4 mAb MTG42
Western blot
IFN-γ mAb MT111W( )( )( )( )( )( )( )( )( )
TNF-α mAb MT15B15( )( )( )  ( )( )( )( )

Symbol keys:


Cross-reactivity

Verified by Mabtech and/or by others. Tests performed in ELISpot and/or ELISA.

  • good
  • poor
  • no

Indications of Cross-reactivity

Based on reports from others or by analysis using recombinant proteins.

  • ( ) good
  • ( ) poor
  • ( ) no

Monkey kits

Specifically developed monkey kits are marked with (NHP).

Blank boxes

Represent cross-reactivities not evaluated.

* Comprises several species. Cross-reactivity may have to be verified on a species basis.

Tutorial, Published December 28, 2023

Incubation strategies for success in ELISpot and FluoroSpot
We've made a handy table summarizing incubation times for different analytes to make your research planning for the ELISpot and FluoroSpot assay a little easier.

Tutorial, Published September 7, 2023

Step-by-step guide to ELISpot
An in-depth guide to how ELISpot works, including best practice and tips and tricks.

Tutorial, Published November 24, 2022

Cell stimulation in ELISpot and FluoroSpot
In this feature, we’ll walk you through the optimal use of different polyclonal and antigen-specific stimuli.

Tutorial, Published November 7, 2022

7 common ELISpot errors and how to avoid them
ELISpot troubleshooting. We discuss 7 of the most common issues we’ve encountered in ELISpot, what mistakes causes them and how to avoid and correct them.

Tutorial, Published October 14, 2022

What is a positive ELISpot response?
DFR is a non-parametric statistical test for determining positive responses in ELISpot and FluoroSpot.

Tutorial, Published September 2, 2022

Isolation, freezing, and thawing of PBMCs
This is a protocol on how to best isolate, freeze, and thaw PBMCs.
Loading publications...

IL-12 (p70)

Analyte description

Interleukin 12 (IL-12) is, when biologically active, a heterodimer (p70) consisting of two covalently linked subunits, p35 and p40. The p40 subunit is shared with IL-23. IL-12 is produced by antigen-presenting cells, specifically dendritic cells, and macrophages. IL-12 is a proinflammatory cytokine that promotes Th1-type responses by inducing IFN-γ production and enhancing the proliferation and cytotoxicity of NK and T cells.

Alternative namesInterleukin 12, IL-12, IL12, CLMF, IL-12A, NFSK, NKSF1, P35, CLMF2, IL-12B, IMD28, IMD29, NKSF, NKSF2
Cell typeMonocyte/MΦ, mDC
Gene ID3592, 3593
